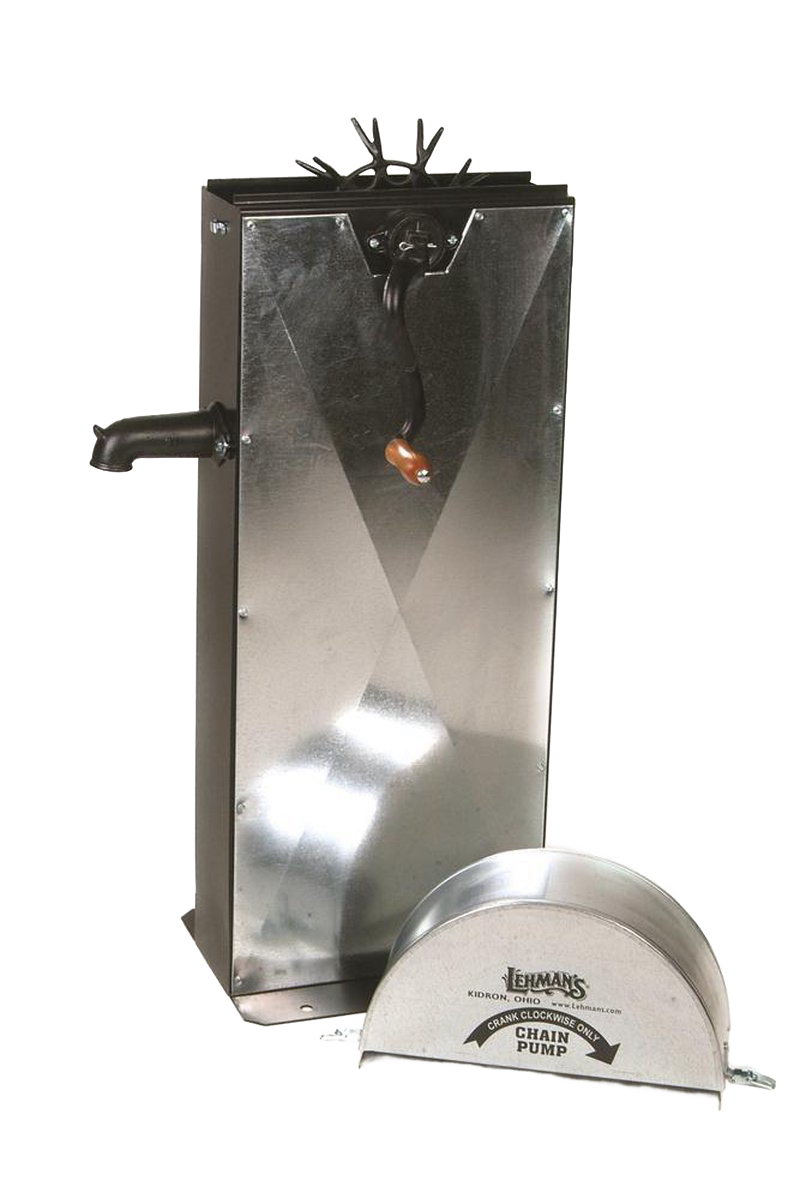

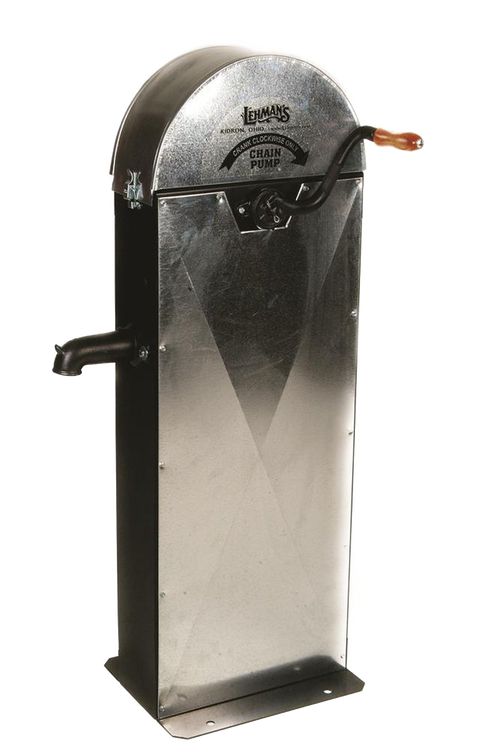

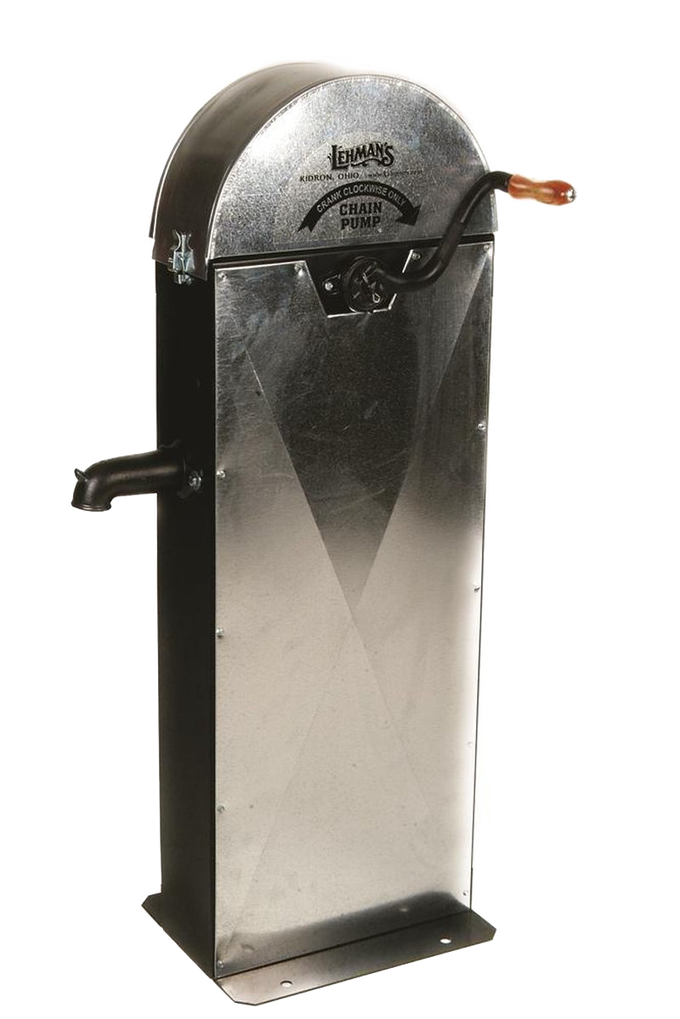

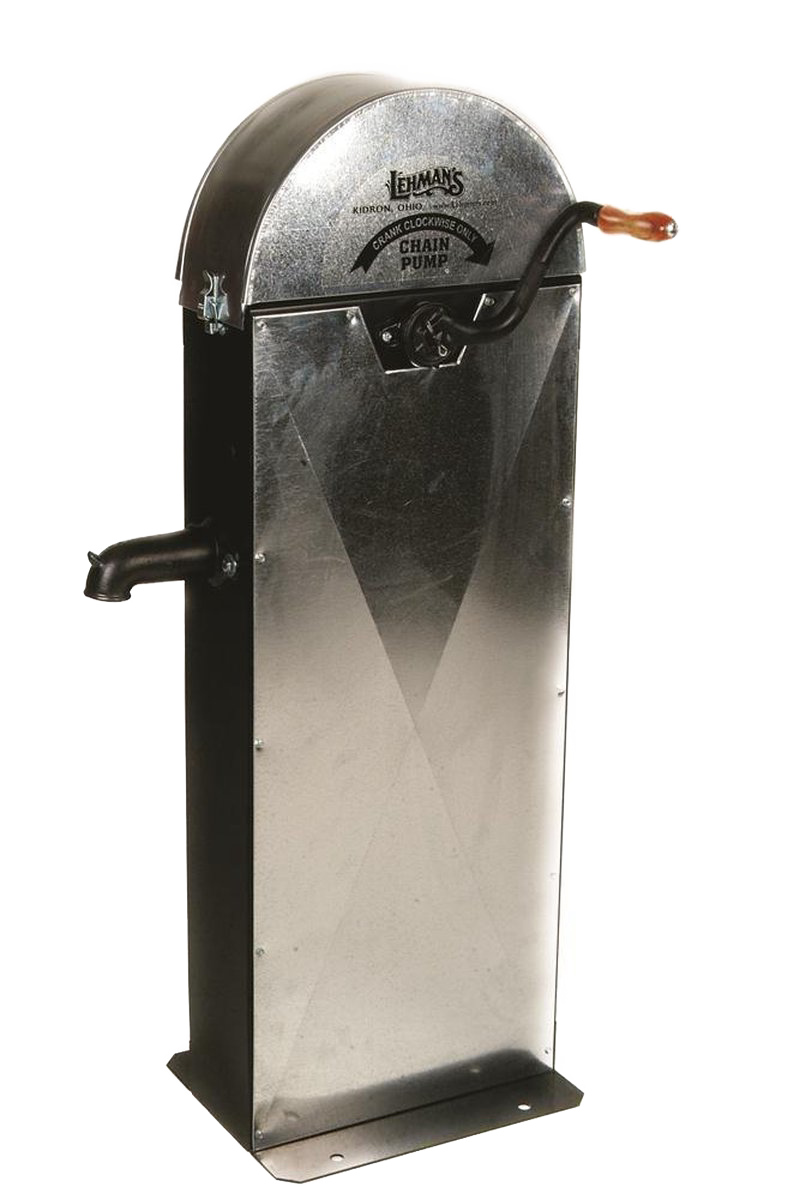

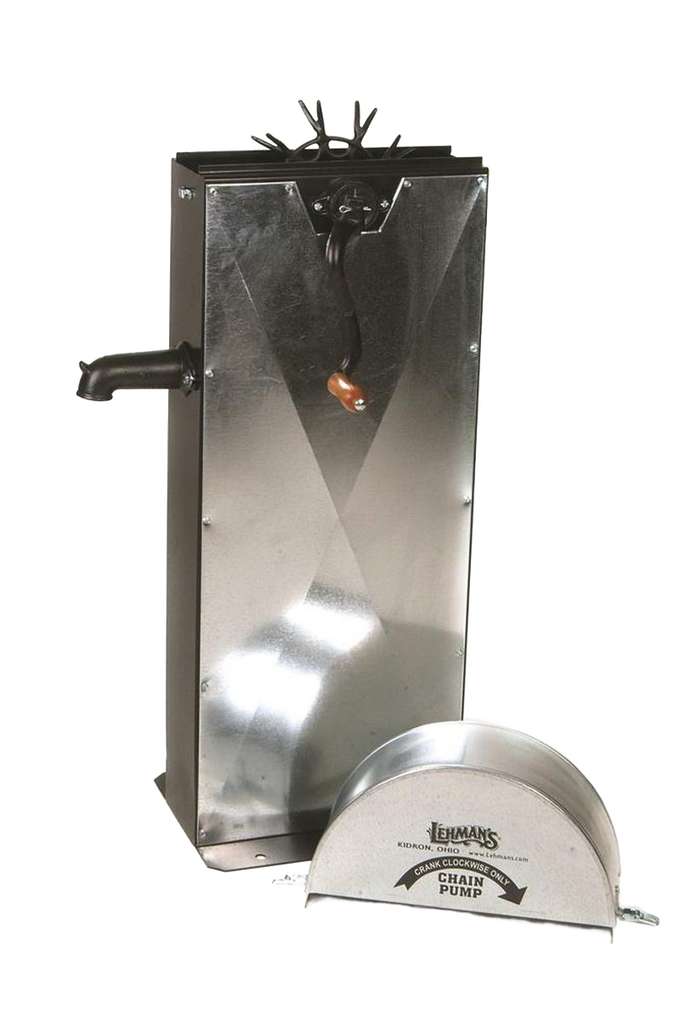

Handcrafted Cincinnati Gem chain water pump with metal body, wooden handle, and crank, designed for continuous flow, ideal for appliances, water pumps, shallow well pumps, and best sellers collections.
All Photos (4)
shop all cincinnati gem

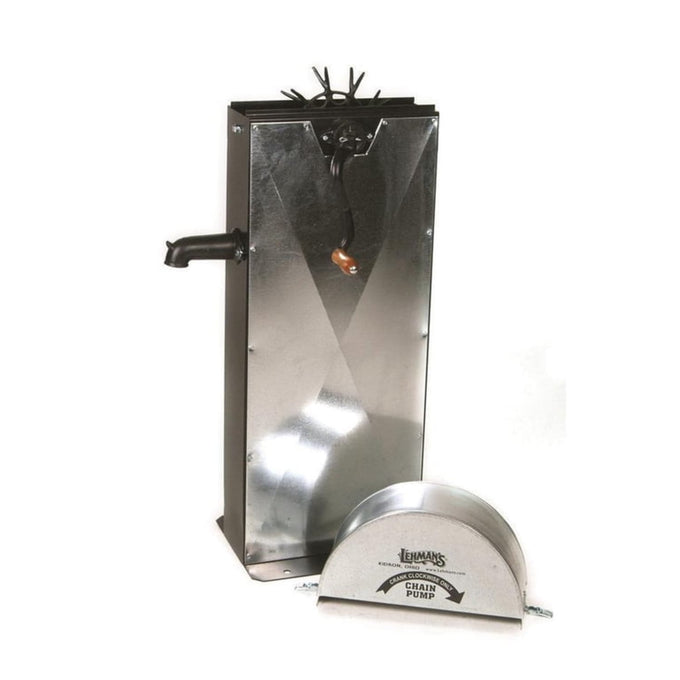

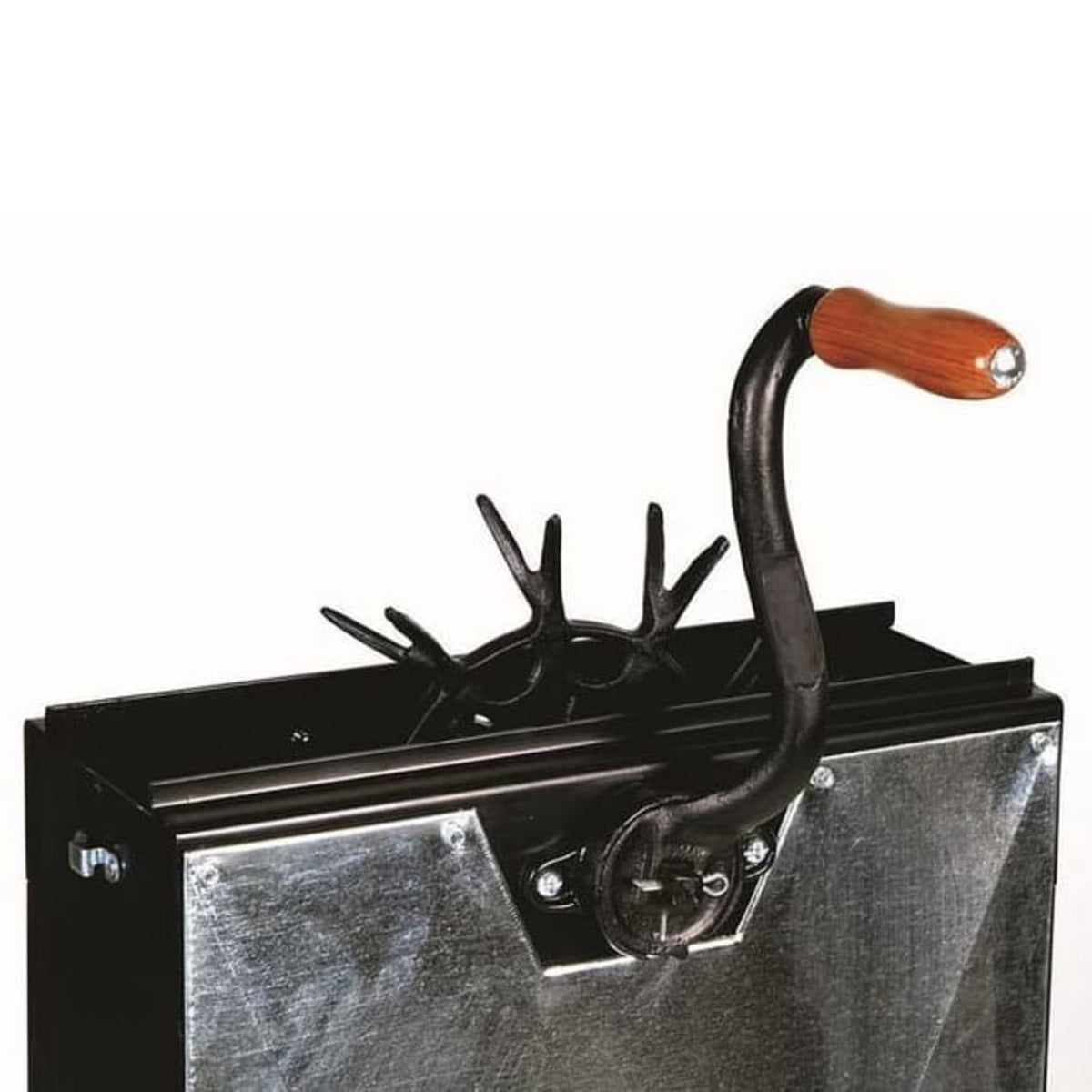

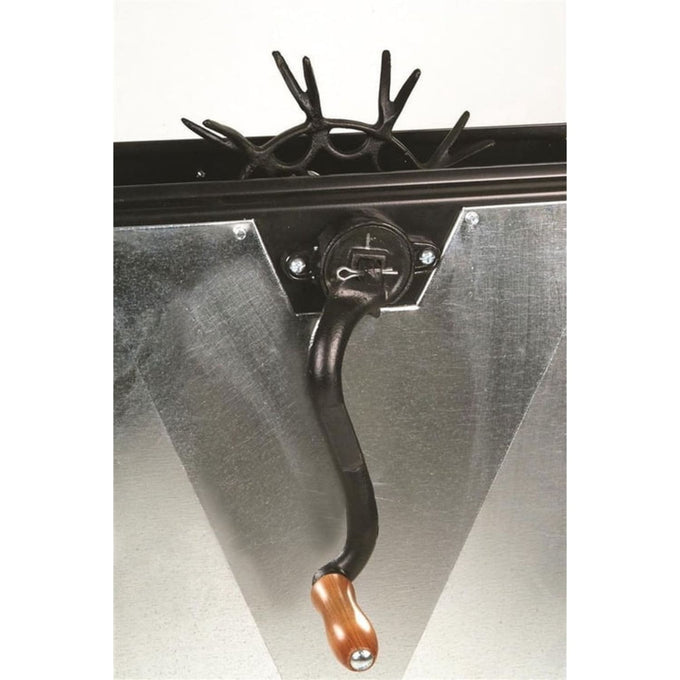

Cincinnati Gem Chain Pump

SKU: 20301000

$549.00
$549.00 $0.00 USD

Efficient hand-crank chain pump for drawing water from cisterns, ponds, and more.

Sorry, this item is out of stock.

We'll Notify You When It's Back In Stock

Description

Just turn the crank for continuous flow. This effective and efficient pump combines a time-proven method with modern materials. Perfect for drawing water from a cistern, tank, pond, lakes or rivers.

Note: Chain pumps do NOT come with chain and buckets. You need to determine how much chain you will need with your application.

Product Highlights
  • Installation instructions included
  • You supply drop-pipe; chain and buckets sold separately
  • Assembled by Lehman's from USA components and a few imported parts

Details

Individual rubber "buckets" mounted on a chain (Chain and Buckets sold separately) and powered by crank, lift water up through a heavy plastic tube (not included). Raise water straight up from as much as 30', from cisterns, tanks and even ponds, lakes or rivers - fast enough to fill a 5-gallon bucket in under a minute.

  • Lift water up to 30 feet

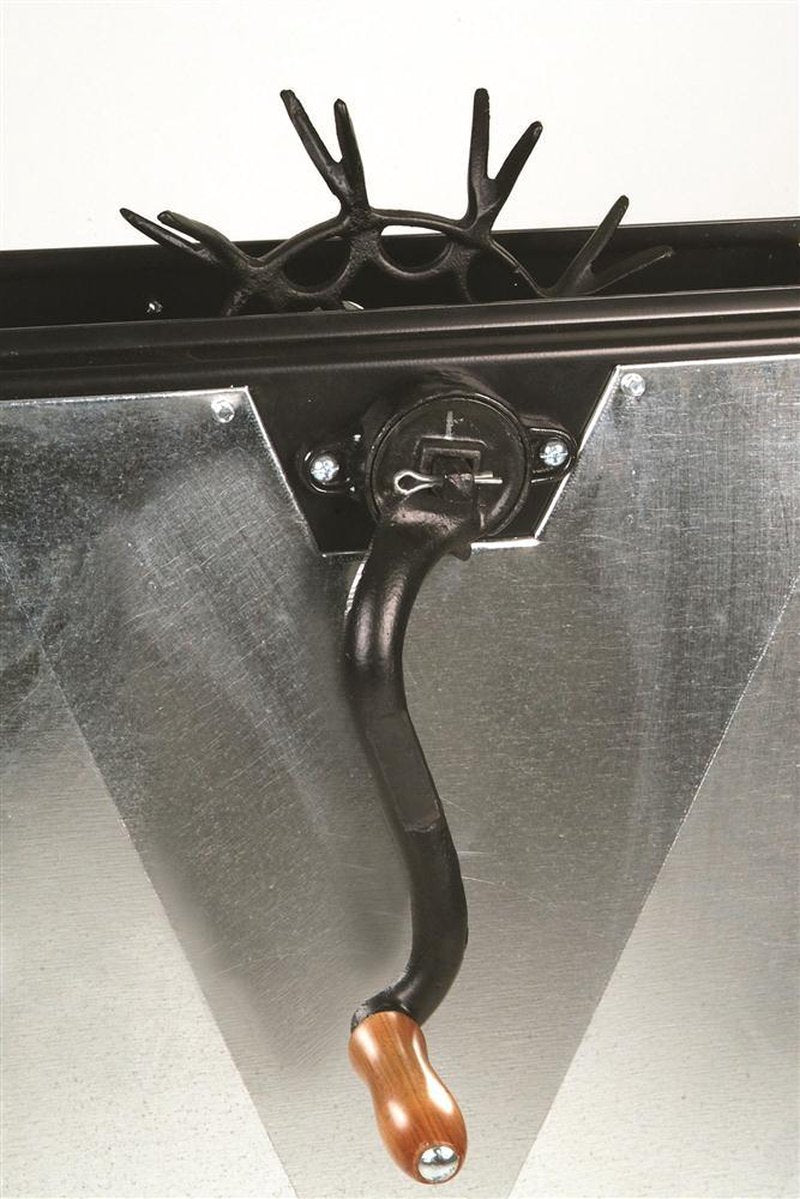

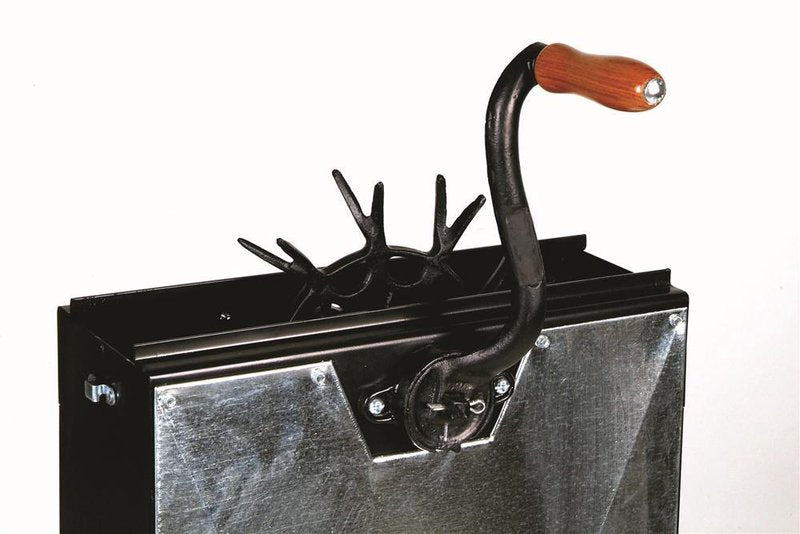

  • Cast iron drive and spout
  • Galvanized housing and tough plastic pipe and reservoir with a Powder-coated steel frame
  • Minimum opening of 3" x 13" in mounting platform is needed
  • For drop pipe use 1-1/2" plastic pipe (widely available, you supply as much as you need)
  • 44" Tall, Mounting Flange 12-1/4" x 15-1/4" Head weight 38 lbs
  • Drop Pipe and Chain/Buckets sold separately
