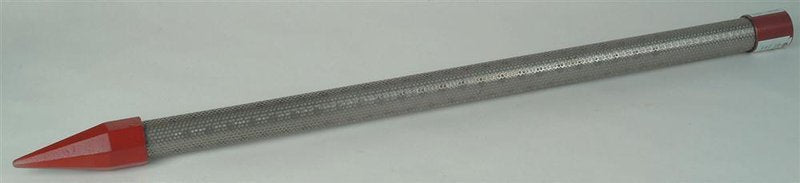

Drive Points for Drilling Wells
SKU: H426355
Durable drive points with stainless jacket and high-flow filter mesh for well drilling.
Description
Description
Drive into any sandy soil with sledge. Add 2-4 ft sections of standard galvanized steel water pipe as you go down using our special couplings. (Use one less coupling than the number of pipe sections.) Our special drive cap (one required) cushions your hammer blows.
Product Highlights
- Rugged ductile iron point is attached straight (unlike cheap competitors) to resist wandering
- Stainless jacket is four times stronger than common brass
- #60 filter mesh keeps out dirt pieces as small as .01 in. yet is exclusively designed for high flow
- Imported
Details
Deep Well - Water Table over 20 ft deep requires a more expensive deep well system. With this method, the driven pipe functions as a well casing only. After installation, slide a 1-13/16" cylinder with 1" drop pipe (you supply) and pump rod down into driven pipe. Connect the drop pipe to any deep well pump-head. For best performance, cylinder should be under water and five feet from well bottom. For a diagram and discussion of deep well systems with separate well casing, refer to Automatic Pumping System category)
Shallow Well - For water table within 20 ft - Use with a cistern pump and 1-1/4" pipe. Driven pipe acts as both a well casing and a drop pipe for the pump.
Specs
| Deep Well | Shallow Well | |
| Diameter | 2 in | 1-1/4 in |
| Length | 38 in | 41 in |
| Weight | 15 lb | 9 lb |
