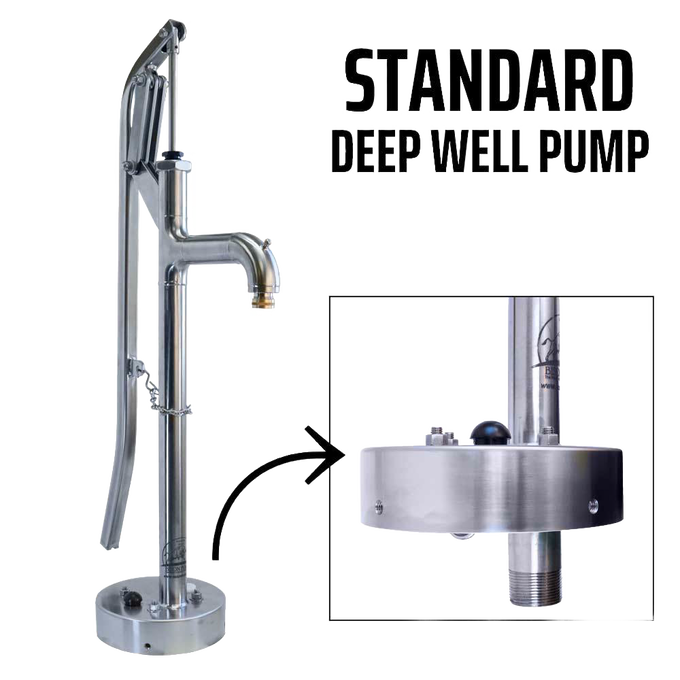

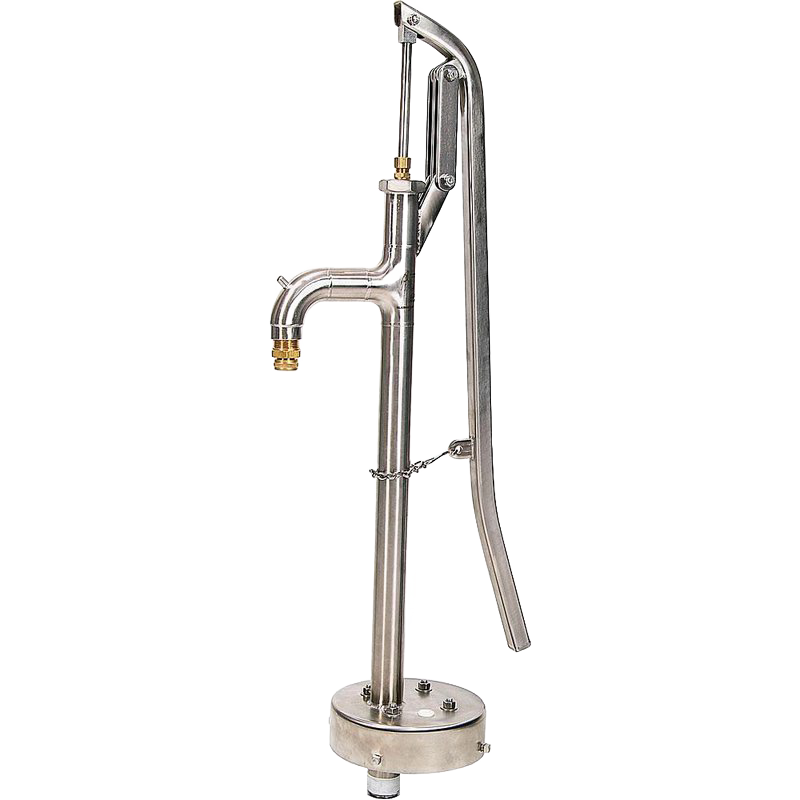

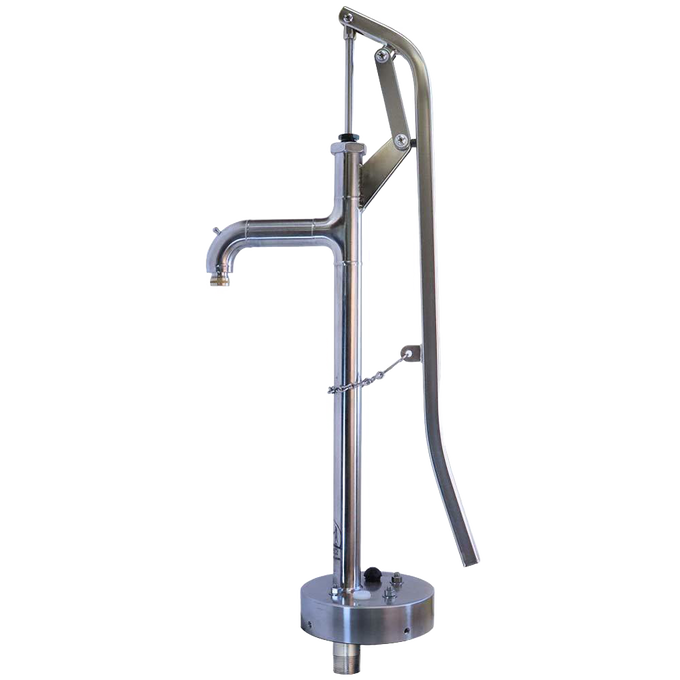

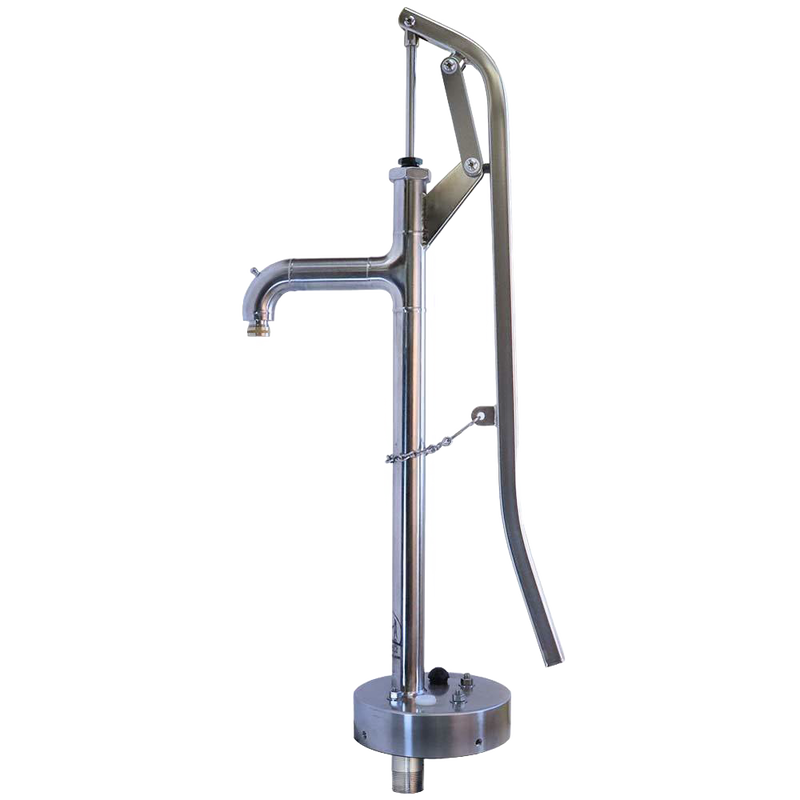

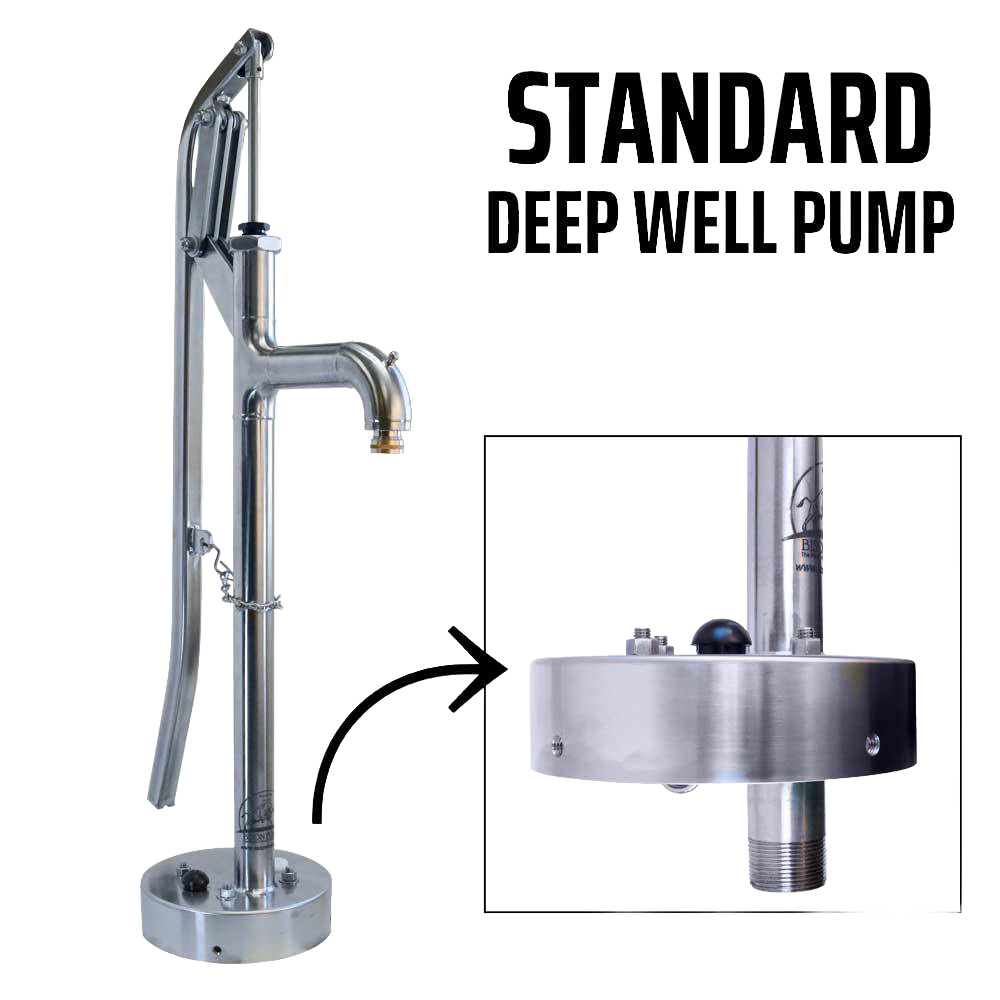

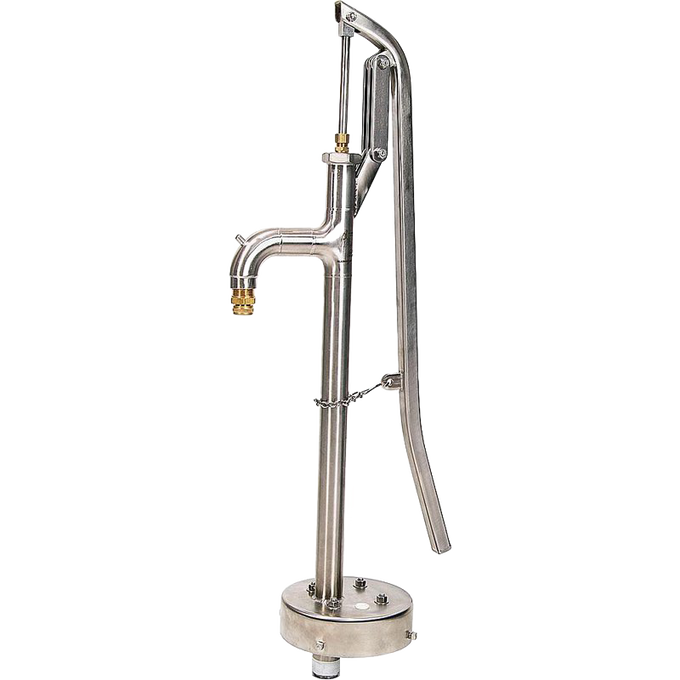

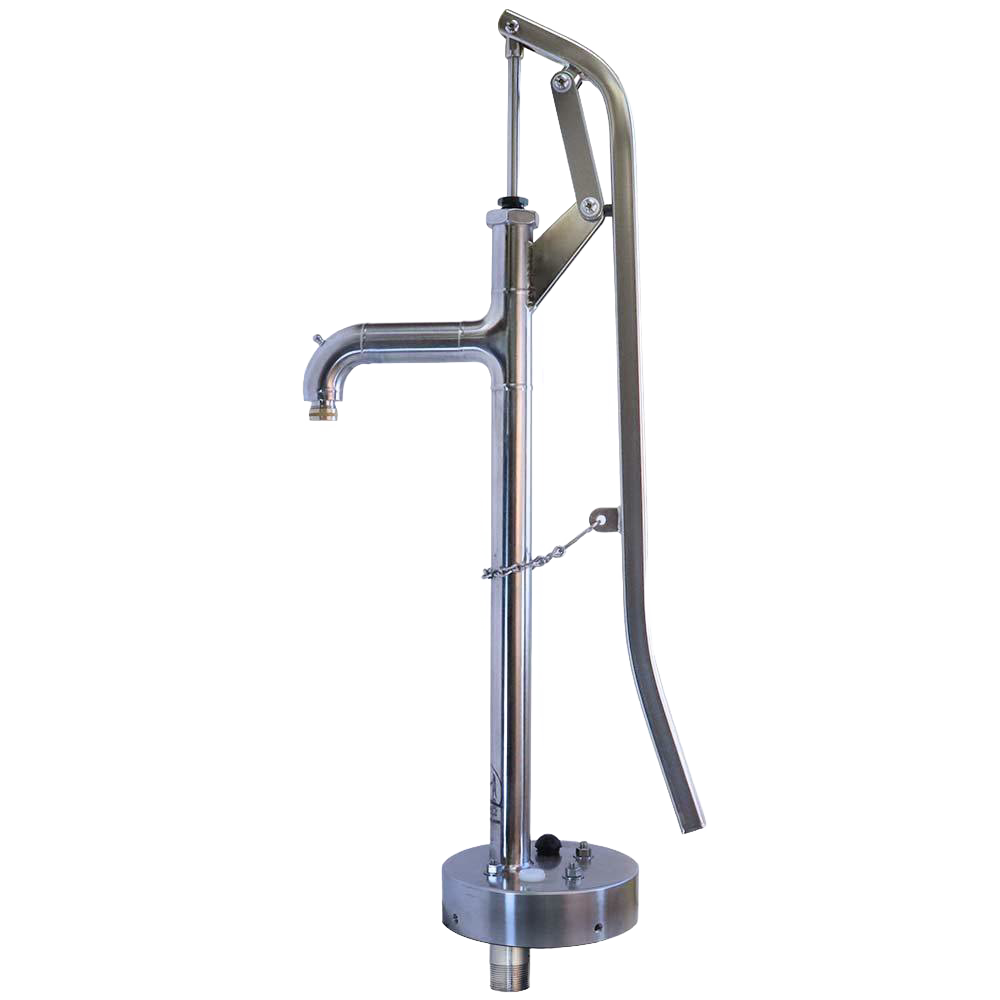

Stainless Steel Deep Well Pump Head

SKU: 20300500

$1,899.99
$1,899.99 $0.00 USD

Durable stainless steel deep well pump head for reliable fresh water access.

Ships directly from manufacturer
Request A Quote

Description

If you have ever experienced a prolonged power outage, you know that access to your well water would be a tremendous help! Take another step toward self-sufficiency by installing a deep-water pump. Bison® pumps and components are designed and handcrafted in Houlton, Maine by people who know the water business.

Note: Cannot ship outside of the USA.

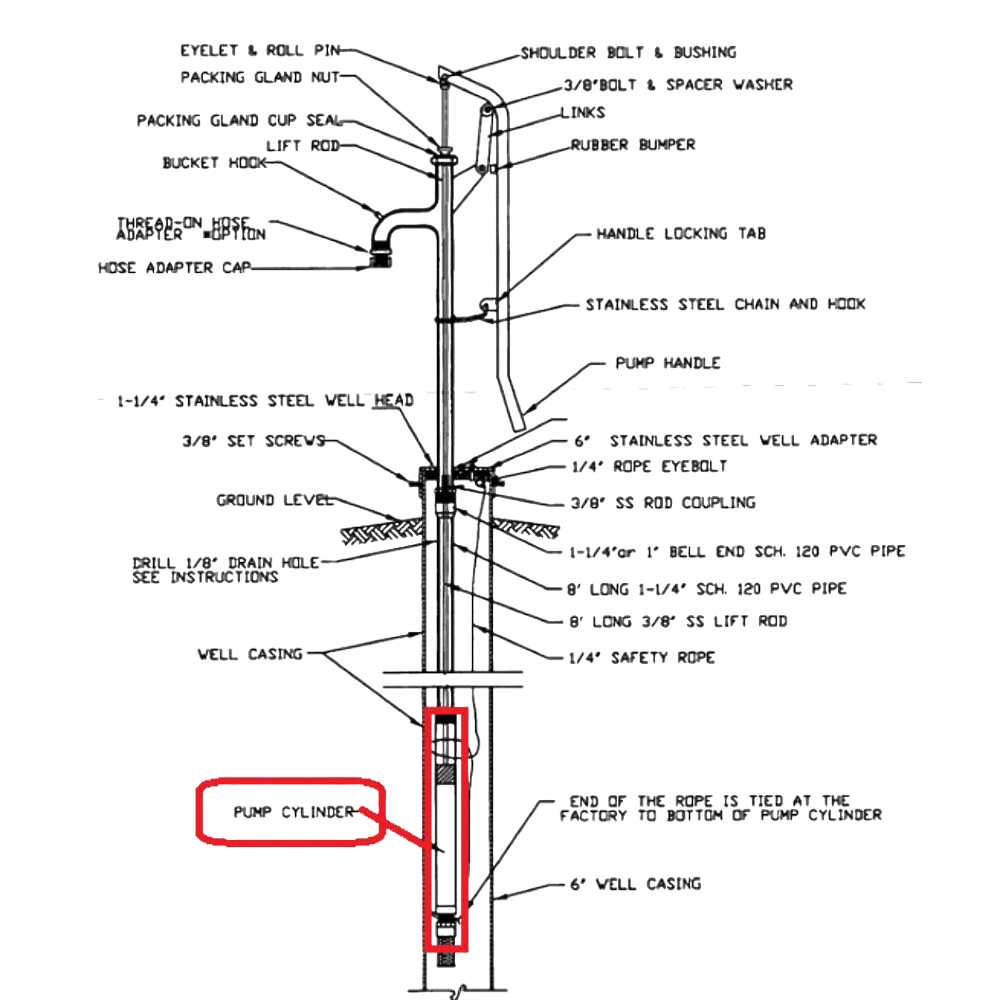

NOTE: This pump requires additional parts to make it functional. 1) The pipe and a connecting rod that go from the pump down into the water, with an estimated additional cost of $8 to $12 per foot. 2) The cylinder, which is installed at the end of the pipe and which can cost at least $500, depending on size. Installed cost can vary widely, depending on your requirements and the depth of your well. If you order the pump, we will contact you for the details we need to make a precise quote. You will need the depth of your well from the surface to the water level and the diameter of your well for us to complete your quote. There is no cost or obligation for a quote!

The pump rod and drop pipe required for this pump head can be found here.

Product Highlights
  • For everyday and emergency supply of fresh drinking water
  • Ideal for home, cabin, cottage, hunting camp or any private water supply
  • May be installed in tandem with an electric pump OR by itself
  • High quality commercial grade (304) stainless steel, lead-free brass and PVC - certified food safe
  • Will not freeze - Advanced design is suitable for cold climates
  • Never needs priming always - ready to go
  • Unlike many cheaper pumps, it can pump into a hose or pressurized tank

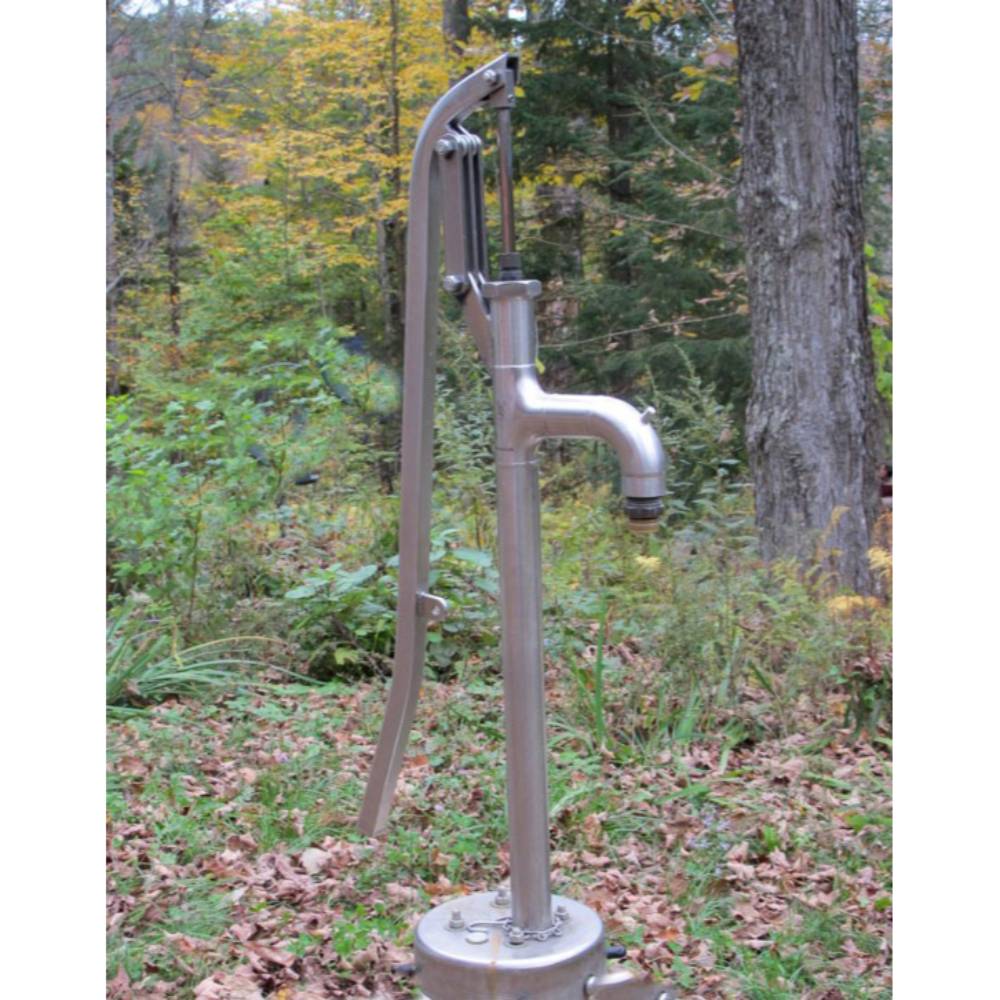

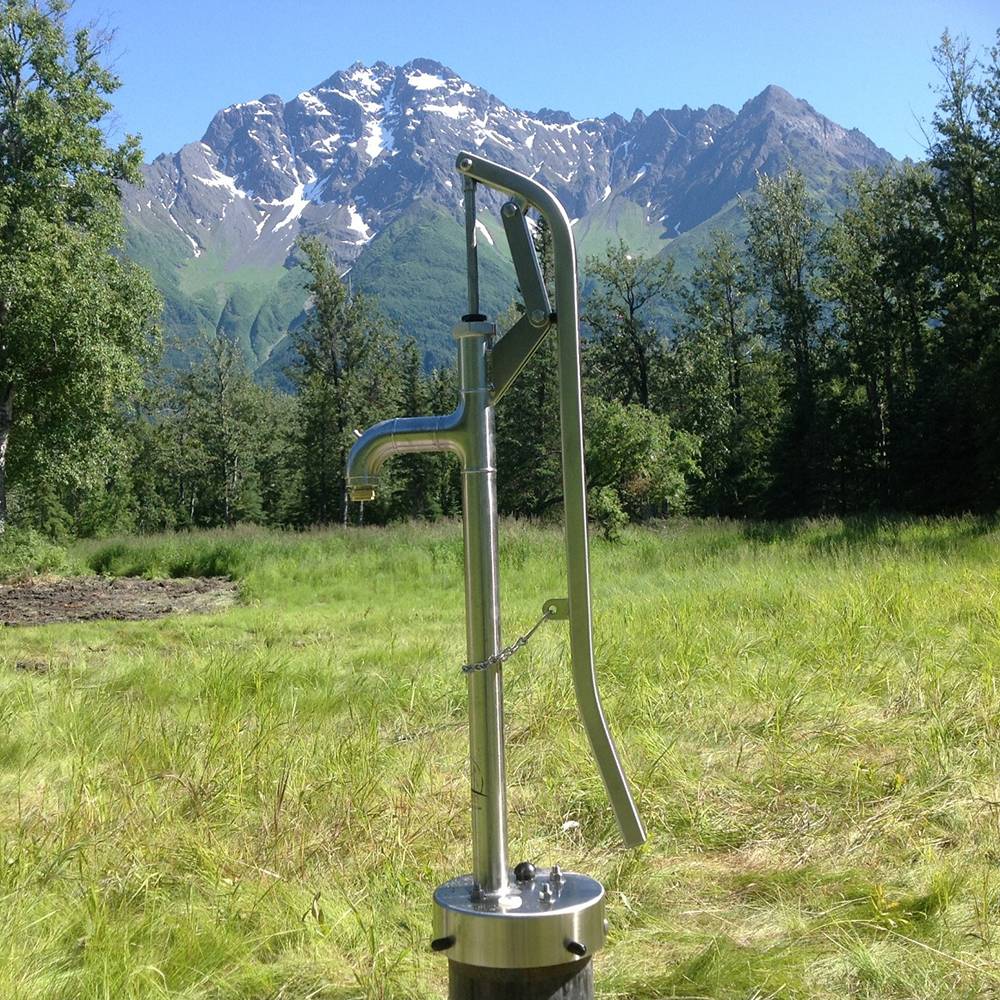

  • Install indoors or outdoors (must be installed directly over well)
  • Lifetime warranty - secure, safe long-term access to fresh water!
  • Works for depths up to 200' static water level
  • USA made

Details
  • Can be installed on a dug or drilled well. If drilled, well casing must be between 2" and 8" inside diameter
  • 39-1/4"H
  • Body diameter is 1-1/4"
  • Use with 1-1/4" pipe
  • Includes standard hose connection (3/4")
  • 36" handle

Specs
  • Pump head installed height: 37"H
  • Pump head shipping weight: 16.5 lb
  • Depth by hand: up to 200' static water level
  • Stroke: 6"
  • Handle length: 33"

Shipping

Ships from manufacturer. Allow at least 8 weeks for delivery - cannot ship outside of the USA.
