Simple Pump Non-Pitless Well Cap
-
4" Well CapSKU: 1852091Ships from Manufacturer.
-
$110.00
110.00
- - +
-
Log in to add to your wishlist!
-
5" Well CapSKU: 1852097Ships from Manufacturer.
-
$125.00
125.00
- - +
-
Log in to add to your wishlist!
-
6" / 6.25" Well CapSKU: 1852109Ships from Manufacturer.
-
$135.00
135.00
- - +
-
Log in to add to your wishlist!
-

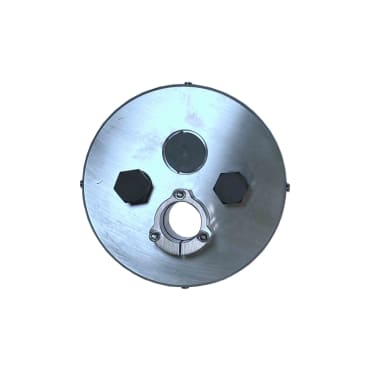

8" Well CapSKU: 1852127Ships from Manufacturer.
-
$140.00
140.00
- - +
-
Log in to add to your wishlist!
Choose Your Well Cap
Easily connect the Simple Pump to your well casing. Each all-metal cap is designed to fit securely next to your submersible pump - works with non-pitless wells.

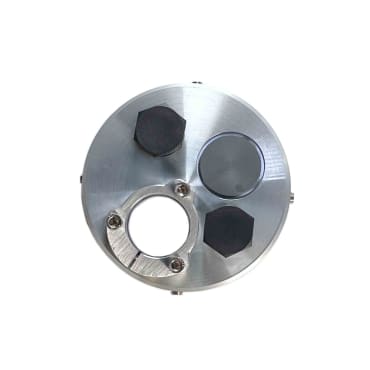

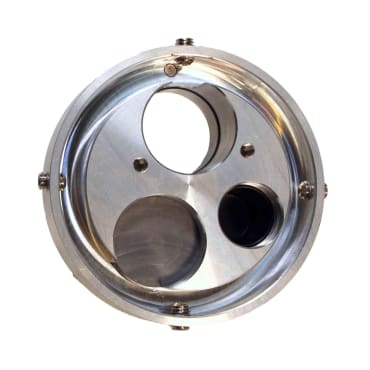

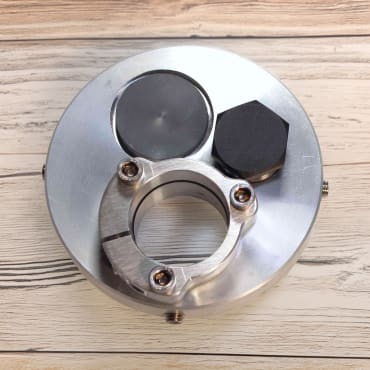

For 4", 5", and 8" Well Caps
- 1-3/4" split flange for the Simple Pump
- 1" FNPT port with threaded PVC plug for AC supply
- 1.7" smooth-wall port (slight taper, press-fit plug) for submersible discharge
- 3 ports on 4" cap; 4 ports on 5" and 8" caps
- 5" and 8" caps include 3/4" FNPT port with threaded PVC plug for vent or shocking
- CNC-machined from a solid billet of metal

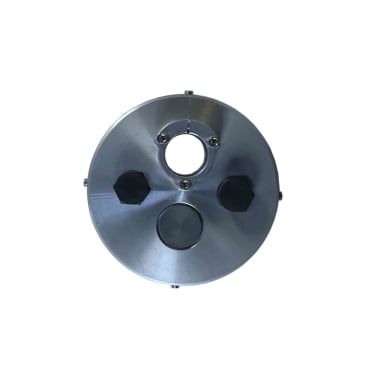

For 6" / 6.25" Well Cap
- Fits 6" casing and 6.25" DR27.6 casing
- Split flange port for the Simple Pump
- 2.375" auxiliary port
- 1" FNPT electrical port
- 1" FNPT shock port
- Includes (4) 5/16-18x1 SSCPSS bolts
Made in the USA
NEXT STEP: Pick your drop pipe (sold separately)

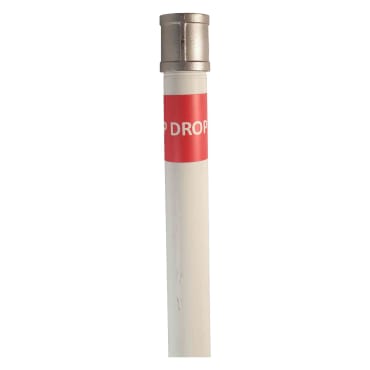

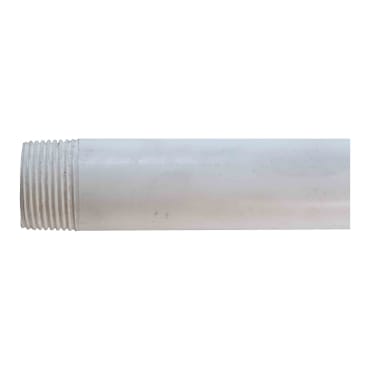

Simple Pump Drop Pipe Kit
-
4.5' Drop Pipe KitSKU: 1852157Ships from Manufacturer.
-
$50.00
50.00
- - +
-
Log in to add to your wishlist!
-
8.75' Top Drop Pipe Kit - Custom Weep HoleSKU: 1852148Ships from Manufacturer.
-
$60.00
60.00
- - +
-
Log in to add to your wishlist!
-

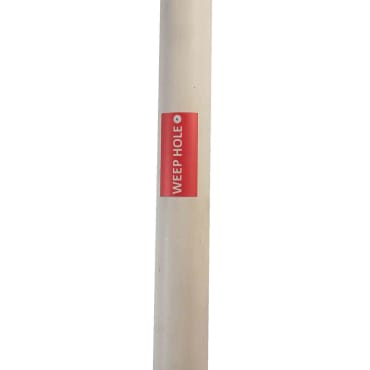

4.5' Top Drop Pipe Kit - 48" Weep HoleSKU: 1852151Ships from Manufacturer.
-
$50.00
50.00
- - +
-
Log in to add to your wishlist!
Choose Your Drop Pipe
Add a drop pipe connection to the Simple Pump pump head and top drop pipe to lengthen the distance to the pump cylinder (required for any Simple Pump deep well pump installation). Contains lift rod connections.
NEXT STEP: Choose your cylinder (sold separately)
Simple Pump Water Well Cylinder with Seal Kit
-
4.5-oz CylinderSKU: 1903361Ships from Manufacturer.
-
$428.00
428.00
- - +
-
Log in to add to your wishlist!
-
8.5-oz CylinderSKU: 1903364Ships from Manufacturer.
-
$508.00
508.00
- - +
-
Log in to add to your wishlist!
-
20-oz CylinderSKU: 1903367Ships from Manufacturer.
-
$638.00
638.00
- - +
-
Log in to add to your wishlist!
Choose the Cylinder You Need
This deep-lifting pump cylinder is required for any installation of Simple Pump's deep well pumps. Each cylinder includes a seal kit.
Choose your size:
- 4.5-oz Cylinder: Pumps water up to 325 ft with an output of up to 4.5 oz per full stroke.
- 8.5-oz Cylinder: Pumps water up to 225 ft with an output of 8.5 oz per full stroke.
- 20-oz Cylinder: Pumps water up to 110 ft with an output of up to 20 oz per full stroke.
Helpful Hint: Smaller cylinders (like the 4.5-oz) give you more depth, while the larger cylinders (like the 20-oz) provide higher volume per stroke.
